OUR TECHNOLOGY

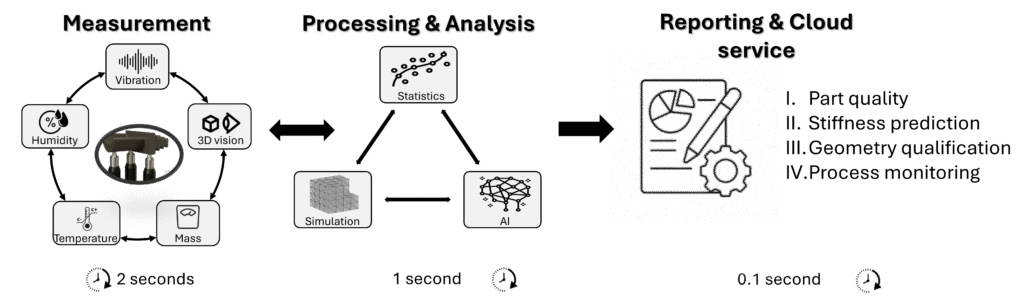

VibroTrace offers automated and reliable quality control of your manufactured parts within seconds. The strength of our technology lies in the multi-facetted measurement approach integrated with model-driven artificial intelligence, and cloud-based reporting. The operator simply puts the part on our specialized fixture, and our technology does the rest.
Resonant Testing

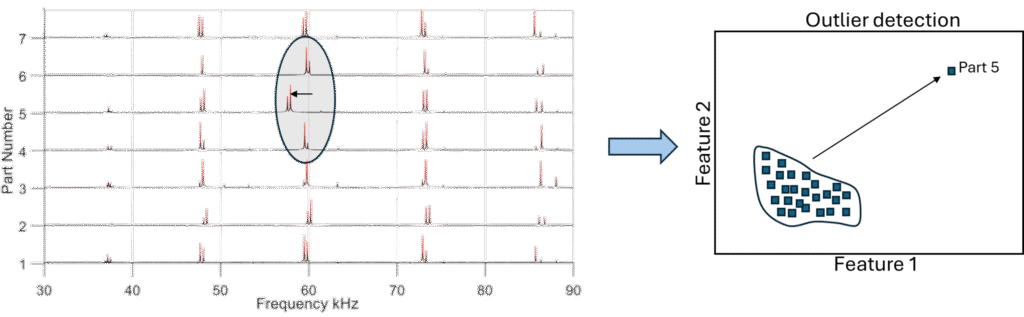

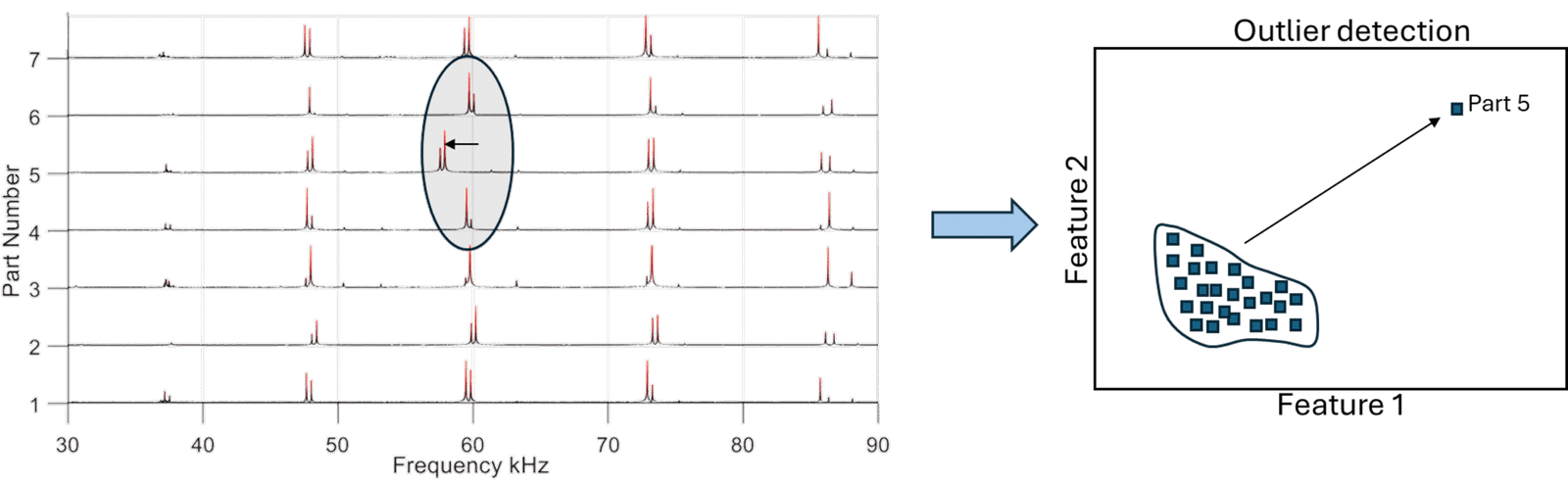

VibroTrace vibrational testing acquires a complex resonant spectrum which can be seen as a fingerprint of the part quality. Any deviations in this fingerprint might indicate quality issues such as cracks, porosity and even residual stresses. Our advanced statistical tools provide an interpretation of the acquired fingerprint and highlights possible low-quality parts as outlier.
Mechanical Stiffness Prediction

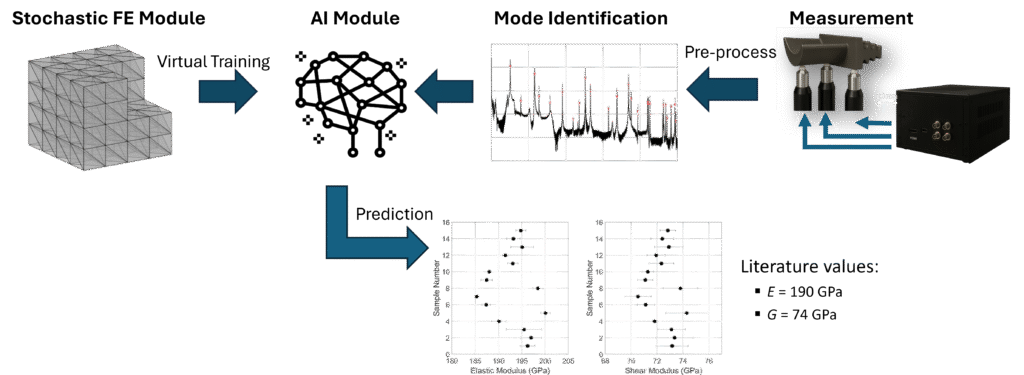

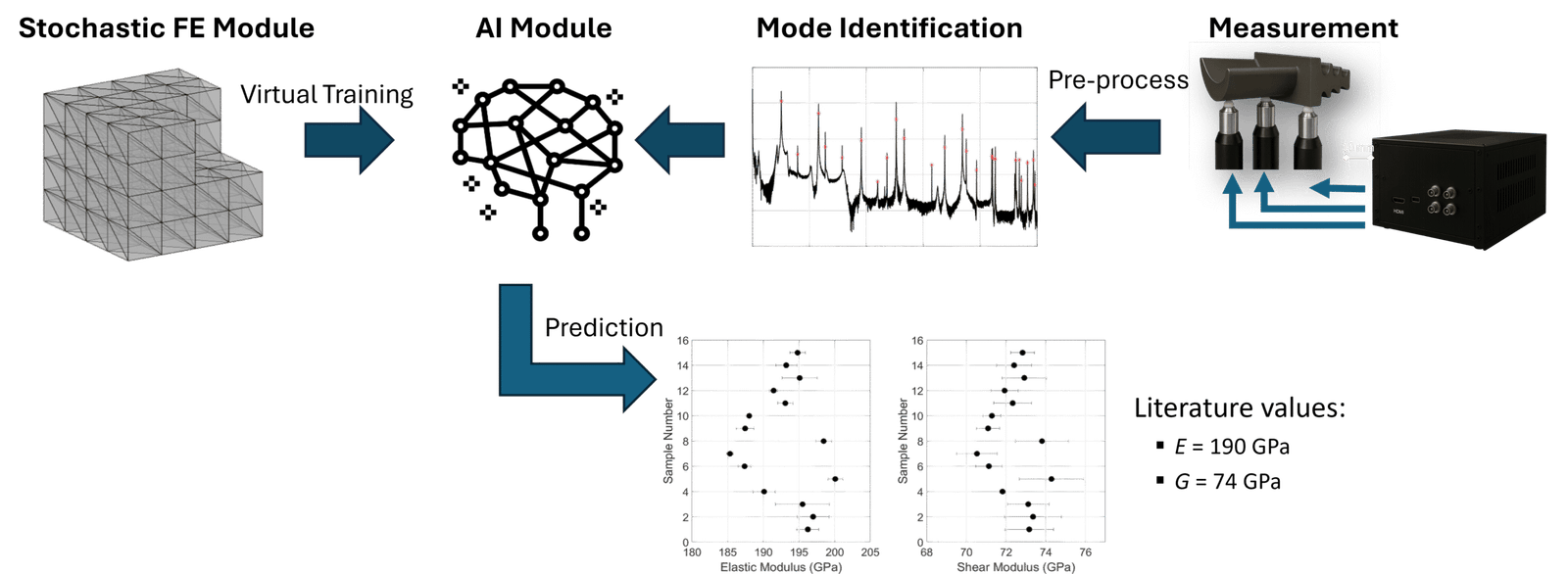

VibroTrace offers a virtually trained machine learning model that provides an instantaneous prediction of the stiffness of your part, such as Young’s modulus (E), and shear modulus (G). This could offer a cheap and fast alternative to classical destructive tensile testing.
Geometry

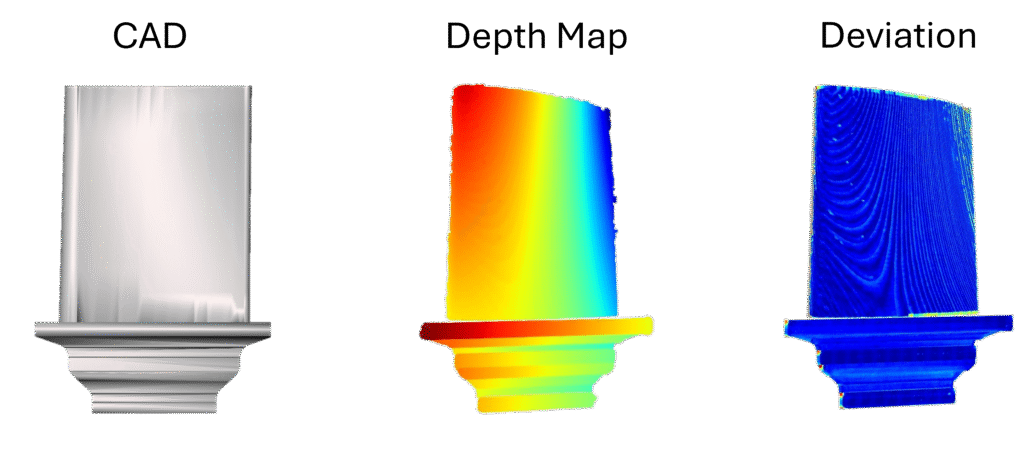

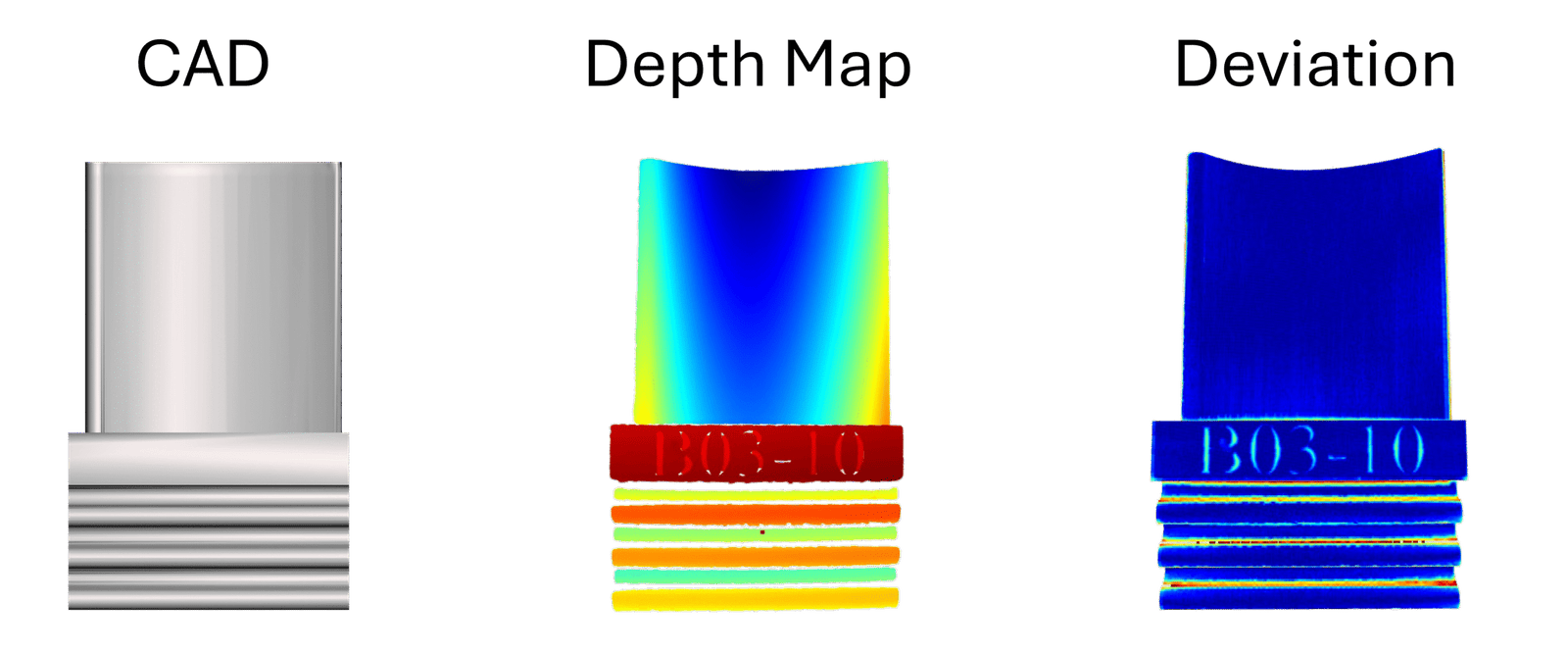

VibroTrace uses a 3D laser snapshot sensor to acquire geometrical data for any part, regardless of surface quality or lighting conditions. With height resolution in the order of micrometers, it enables verification of even the smallest tolerances. A matching procedure automatically projects the measured geometry onto the nominal CAD model, providing direct visualization of any geometrical deviation. For high-volume serial production, the system supports automated label reading, enabling highly efficient and error-free measurement campaigns.
Long-Term Quality Monitoring

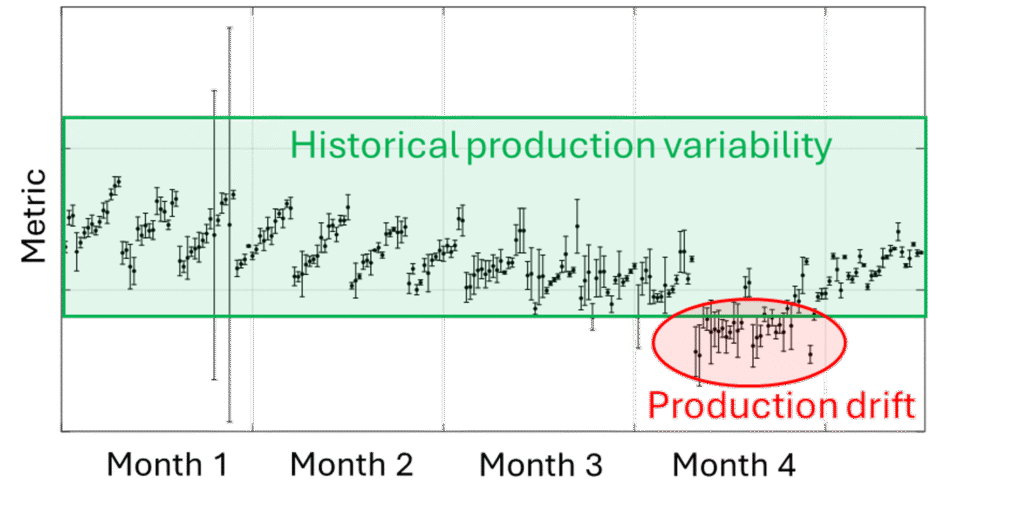

VibroTrace also monitors environmental conditions, such as temperature and humidity, resulting into highly reliable and stable measurements over time. This opens opportunities to get insight in your long-term production variability and to identify any production drifting in an early stage.
